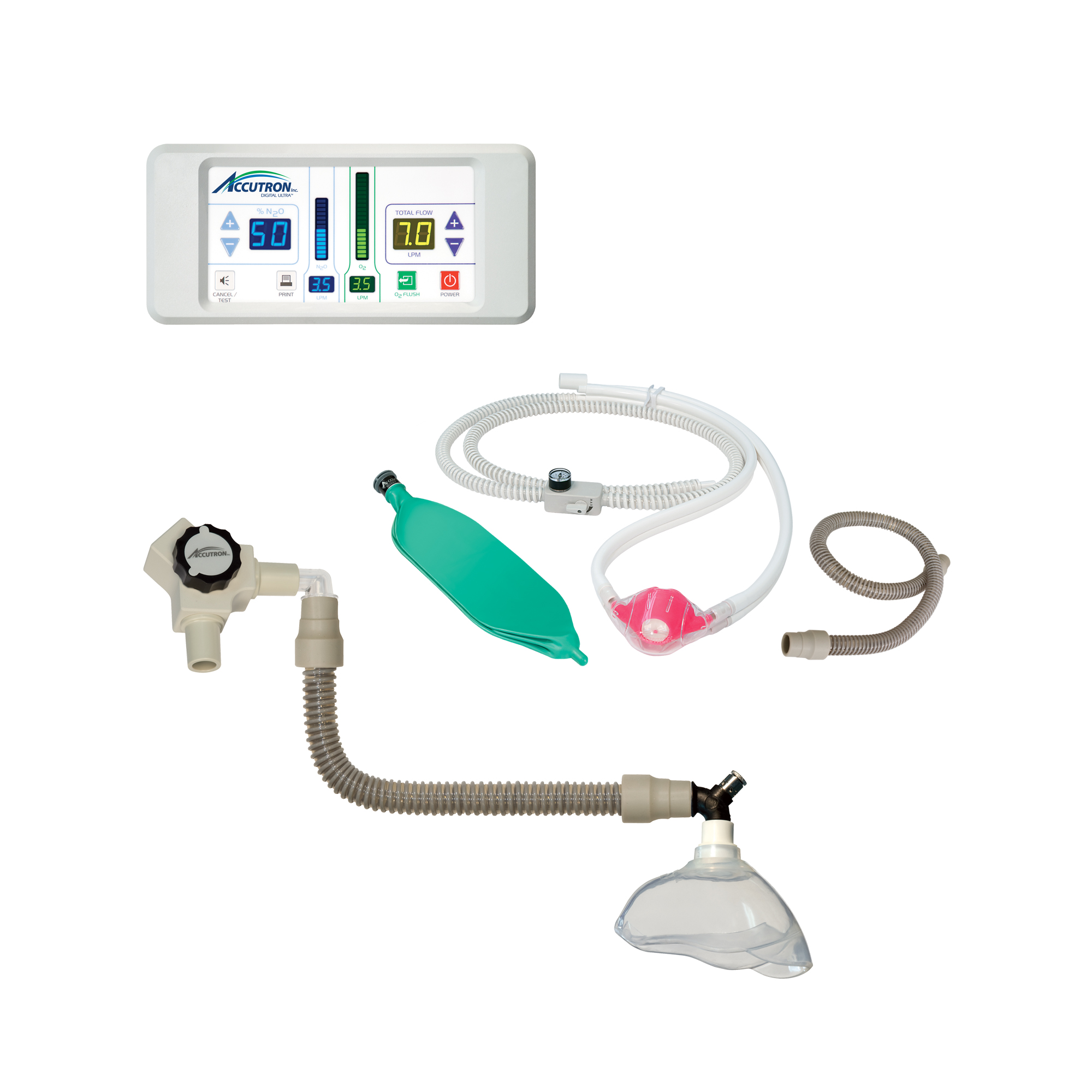

Accutron™ Digital Ultra™ Oral Surgery Flushmount

The Digital Ultra™ Flushmount Oral Surgery has the same unique operating features as the Digital Ultra™ Flushmount, but includes a directional Y valve, a full facemask and corrugated tubing. It is designed for clinicians who prefer to work in a digital environment but want critical parameters displayed both numerically and as electronic flow tubes. The ease of color-coded, fingertip controls is an additional feature of the flowmeter. Its sealed flush surface makes it easy to disinfect or barrier-protect.

All Accutron flowmeters carry a 2-year warranty – the longest flowmeter warranty in the dental industry.

Product Specifications – Flushmount Flowmeters
Dimensions (W x H x D)
Flushmount Control Module: 9" x 4" x 1 1/2"
Remote Main Module: 8" x 4" x 7 1/2"
Mounted Dimensions (W x H x D): 9 1/2" x 4 1/4" x 1/4"
Weight - Flushmount Control Module: 1.3 lbs (0.6 kg)
Weight - Remote Main Module: 6.1 lbs (2.8 kg)
Mixed Gas Outlet Diameter: 7/8" nominal (22 mm)
Oxygen Inlet: Male DISS (CGA-1240)
Nitrous Oxide Inlet: Male DISS (CGA-1040)
Nitrous Oxide Mixed Ratio Range: 0-70%
Oxygen Flow Range: 1.0-9.9 LPM
Nitrous Oxide Flow Range: 0-6.9 LPM
Inlet Pressure (each gas): 50-55 psi
Resuscitator Connector: Quick Connect (1/4" Imperial) at remote outlet
Resuscitator Connector Flow: 100 LPM
Power Requirements: 100-240 Volt AC; 50-60 Hz
