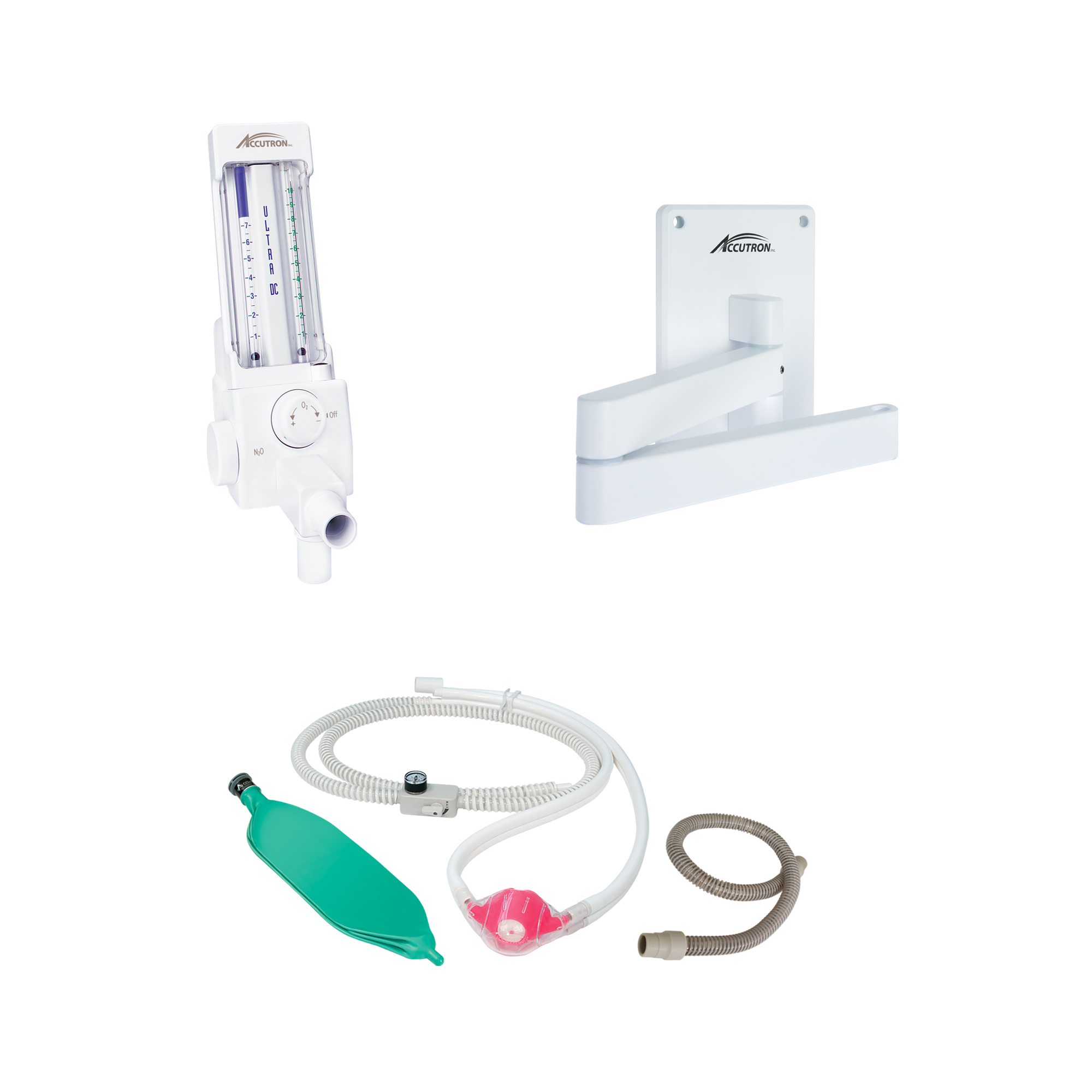

Accutron™ Ultra DC™ Package E – 16-inch Bi-fold Wall Arm

The Ultra DC™ Flowmeter is designed for the clinician preferring the dual control method of establishing N2O and O2 settings and state-of-the-art design innovation. The unit combines conventional operation with optimal safety, and its appearance complements modern operatory esthetics.

• Independent oxygen and nitrous oxide controls.
• Oxygen control with on/off switch.
• Oxygen fail-safe and oxygen flush.
• Oxygen resuscitation connector.
• Emergency air valve.
• Directional check valve.
• DISS inlet fittings.

Note: Order quick connect hoses separately.

All Accutron flowmeters carry a 2-year warranty – the longest flowmeter warranty in the dental industry.

Product Specifications
Dimensions (W x H x D): 4 1/4" x 10 1/2" x 8"
Weight: 4.5 lb (2.0 kg)
Mixed Gas Outlet Diameter: 7/8" nominal (22 mm)
Oxygen Inlet: Male DISS (CGA-1240)
Nitrous Oxide Inlet: Male DISS (CGA-1040)
Oxygen Flow Range: 3-10 LPM
Nitrous Oxide Flow Range: 0-7 LPM
Inlet Pressure (each gas): 50-55 psi
Resuscitator Connector: Quick Connect (1/4" Imperial)
Resuscitator Connector Flow: 100 LPM Oxygen
