Accutron™ Guardian Monitor™ Conventional Manifold/Desk Alarm System B (2+2) with Pre-Install Kit
38003
Includes: Manifold with pressure gauges and high/low pressure alarm switches, 4 cylinder regulators, 4 4-ft. DISS hoses (2 O2 & 2 N2O), power supply, desk control panel, and cylinder restraints. Plus, pre-installation kit.
Where to Buy
  • Overview
  • Resources
  • Warranty

Description

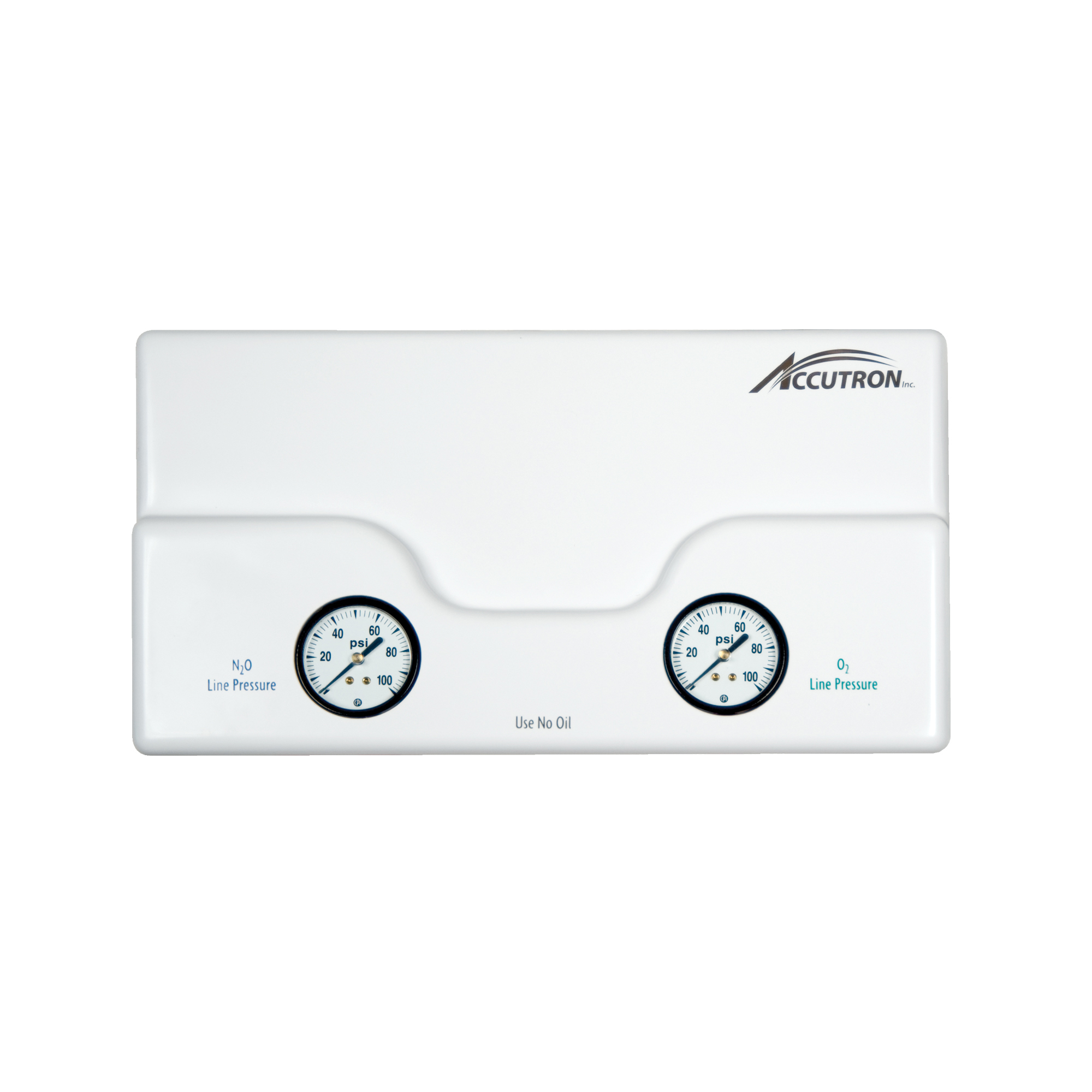

The Guardian Monitor™ Conventional Manifold/Alarm is an easy-to-use, operator controlled system. It is designed to safely and economically deliver nitrous oxide and oxygen gases to dental operatories. Regulators control the gas line pressure at 50-55 psi, and a pressure relief valve protects the gas lines and equipment against excessive line pressure. In the event of line pressure changes, the alarm system provides audio and visual alerts.

  • Manual cylinder changeover.
  • Pressure relief valve.
  • Alarm with audio and visual warnings.
  • Accommodates G and H cylinders.
  • Zone valve package available. A zone valve is required when installed in a remote location.

Product Specifications
Dimensions with cover: 15" x 8.5" x 3.5"
Working Pressure: 50-55 psi
Hose Length: 3 ft.
N2O Outlet: N2O DISS
O2 Outlet: O2 DISS

Literature

Accutron™ Templates and Specifications for Flowmeter and Outlet Installations DOWNLOAD
HuFriedyGroup Product Catalogs VIEW
Instrument Reprocessing Guide DOWNLOAD

Warranty Information

Click Here to Read the Warranty Policy: https://www.hufriedygroup.com/services/warranty-returns
